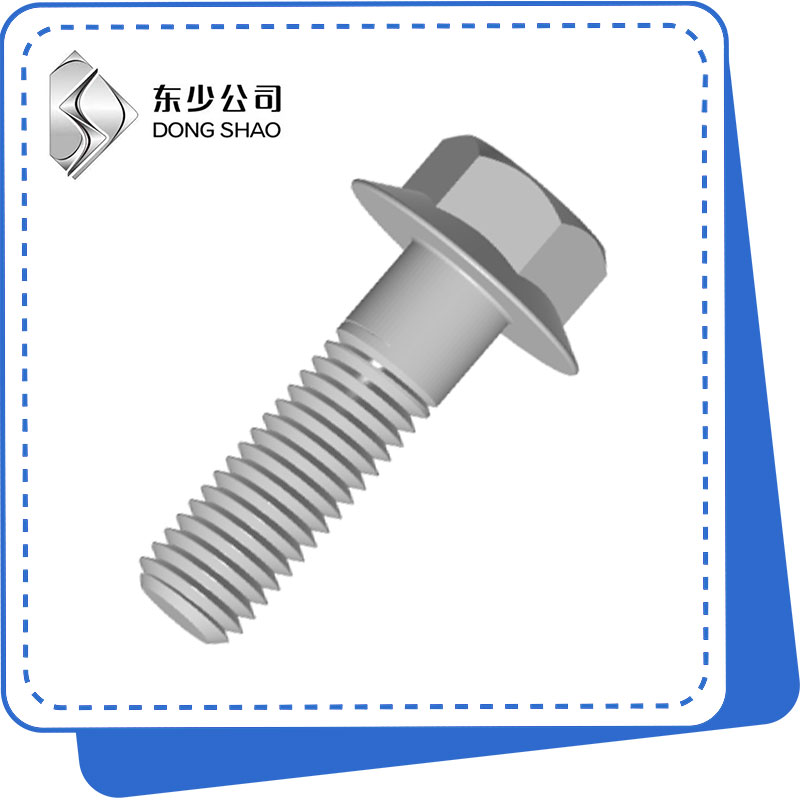

六角頭法蘭螺栓
  • 六角頭法蘭螺栓六角頭法蘭螺栓

六角頭法蘭螺栓

東紹是中國主要生產六角頭法蘭螺栓的製造商和供應商之一,擁有多年的經驗。希望與您建立業務關係。

發送詢問

產品描述

東紹是中國著名的六角頭法蘭螺栓製造商、生產商和出口商之一。


Its production of hexagon head bolts with flange have the following characteristics:The head of the bolt can provide greater torque and provide more solid protection for the most important parts of the fastening flange;Easy to install, suitable for all kinds of machinery, construction, aerospace and other fields;The fastening force is strong, which can ensure the long-term firmness and reliability of the connector;With good accuracy, it is suitable for highly precise engineering and assembly work.hexagon head bolts with flange are widely used in various fields because of their structural characteristics and excellent performance.


以下是一些帶有法蘭六角頭螺栓的典型應用:汽車工業、機械製造、電力設備、建築工程、公路和鐵路橋樑、重型機械


產品參數

(毫米) M5 M6 M8 M10 M12 M14 M16 M20
P 0.8 1 1|1.25 1|1.25|1.5 1|1.25|1.5|1.75 1|1.5|2 1|1.5|2 1.5|2|2.5
最大 5.7 6.8 9.2 11.2 13.7 15.7 17.7 22.4
最大直流電壓 11.8 14.2 18 22.3 26.6 30.5 35 43
最大DS 5 6 8 10 12 14 16 20
最小值 4.82 5.82 7.78 9.78 11.73 13.73 15.73 19.67
最小 8.71 10.95 14.26 16.5 17.62 19.86 23.15 29.87
最大低頻 1.4 2 2 2 3 3 3 4
最大k值 5.4 6.6 8.1 9.2 11.5 12.8 14.4 17.1
最小轉速 0.25 0.4 0.4 0.4 0.6 0.6 0.6 0.8
最大s 8 10 13 15 16 18 21 27
最小 7.78 9.78 12.73 14.73 15.73 17.73 20.67 26.67
